Legacy Shuttle
Experience the future of urban transportation with Endera's Legacy Shuttle Buses. Designed for safety, durability, and performance, these buses redefine the commuting experience. Built and completed in Endera's Ohio manufacturing plant with a focus on safety and efficiency. Available in B23 (23ft), B24 (24ft), B25 (25ft), and B28 (28ft) models.
Exterior Features
The Endera Legacy Shuttle features a fully welded galvanized steel cage framework with high gloss fiberglass exterior walls and a white gel coat finish, delivering unrivaled safety and durability for urban transit operations.
- White Exterior Gel Coat Finish
- Fully Welded 1.5" x 1.5" Tubular Steel Roll Cage Framework
- High Gloss Fiberglass Exterior Wall Material
- Electric Powered 36" Entrance Door with Dash Switch (33" Clear Opening)
- Rosco Exterior Manual Mirrors
- Rear Mud Flaps
- Steel Rear Bumper
- Rear Wheel Rubber Fender Guard
- Exterior LED Lighting Package
Interior Features
Comfortable and functional interior design with LED lighting, track seating, padded vinyl driver’s area, and overhead storage — built for daily passenger transit use.
- 5/8" Exterior Grade Plywood Floor
- Coved Flooring
- Track Seating
- Stanchion at Top of Step Well w/ Modesty Panel & Hand Rail Parallel to Steps (Left Side)
- Right Hand Grab Rail Parallel to Steps
- Black Interior Sidewalls
- White Interior Ceiling
- Gray Padded Vinyl In Driver's Area
- Interior LED Lighting Package
- Overhead Storage Compartment in Front Bulkhead
- 4 Interior Speakers (2 in Front and 2 in Rear)
- Additional Curbside Leaf Spring on Lift Buses

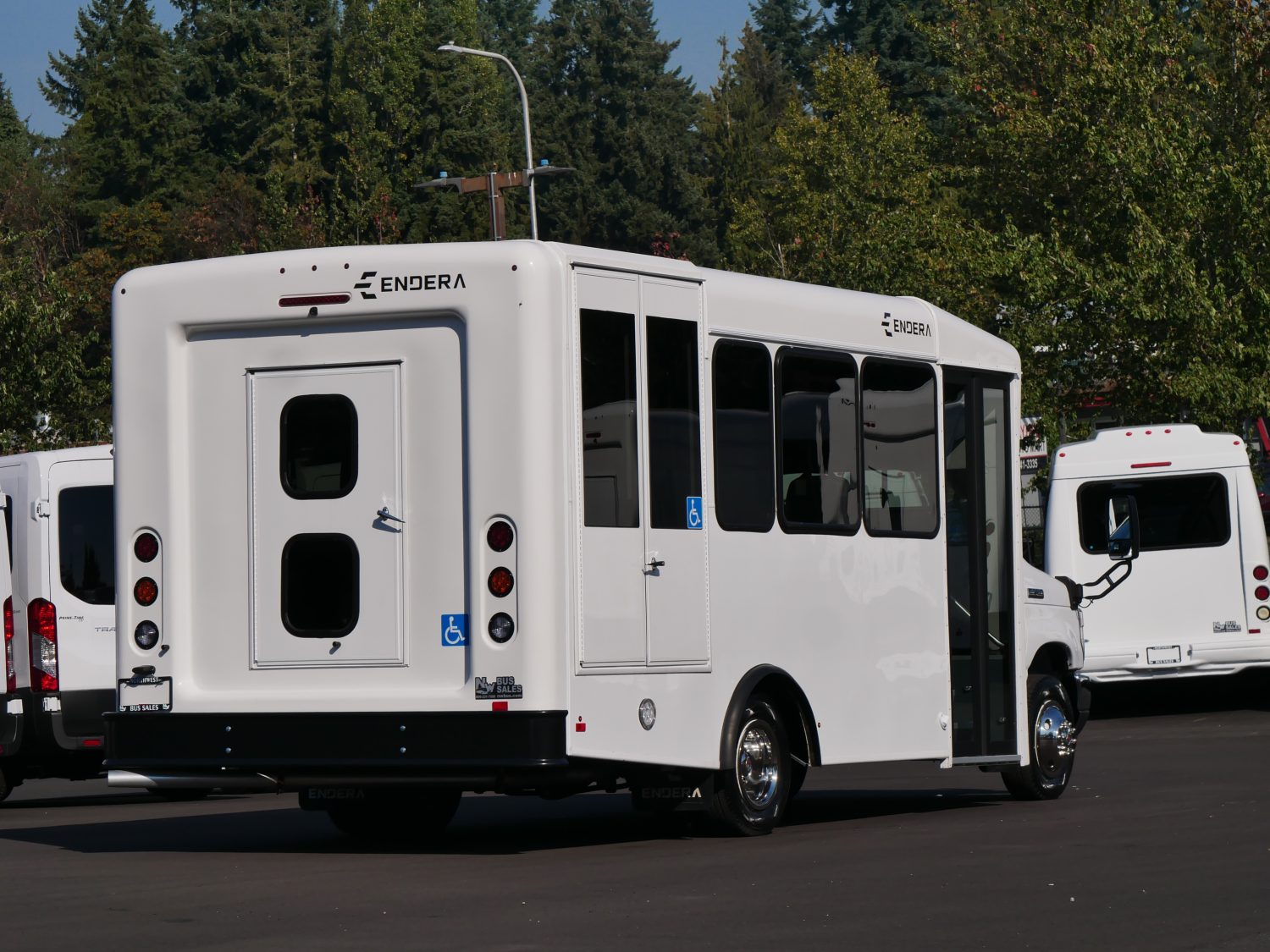

Windows & Doors
Large passenger windows and safety egress windows with color coded wiring and door-activated interior lights.
- 36" x 36" Clamp Ring Windows
- One Egress/Push Out Window Per Side
- Color Coded Wiring
- Door Activated Interior Lights

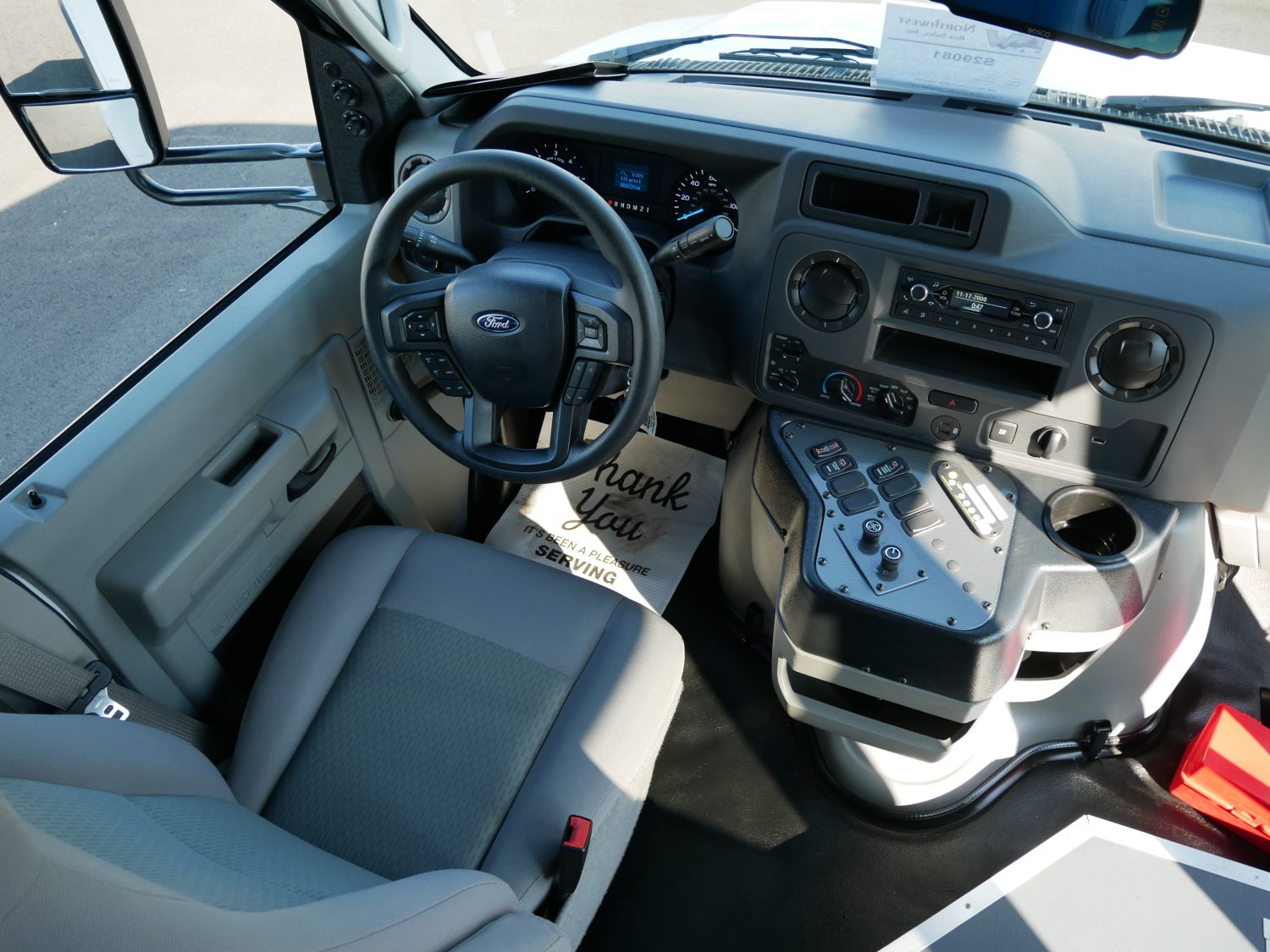

Electrical System & Accessories
Advanced programmable electrical system with full LED lighting and standard decal package.
- Intermotive Flextech Programmable Electrical System
- Exterior LED Lighting Package
- "Endera" Basic Decal Kit
- Emergency Triangles

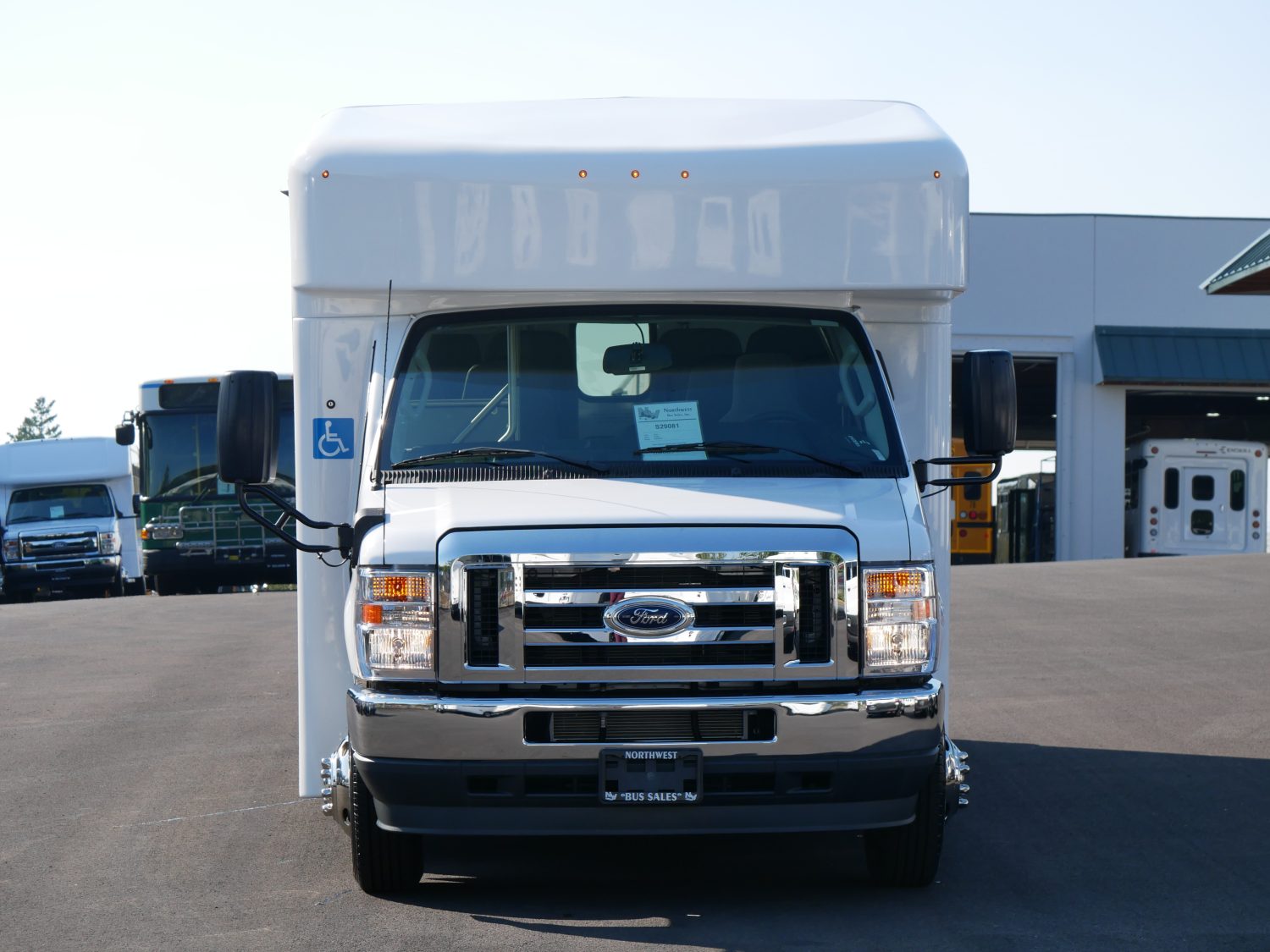

Chassis & Warranty
Ford OEM standard chassis features paired with Endera’s comprehensive warranty coverage and FMVSS certification.
- Chassis Daytime Running Lights
- OEM 240 Amp HD Alternator
- Cruise Control
- CNG Engine Prep Package
- 3 Year / 36,000 Mile Warranty (OEM Only)
- 5 Year / 100,000 Mile Warranty (Endera Structure Only)
- STURRA Tested for 7 Years / 200,000 Miles
- FMVSS Certified
Specifications
Explore the complete specifications for all models.
| Vehicle Name | B23 |
| Length | 23 ft |
| Wheelbase | 158 in |
| Chassis | Ford E350 / E450 |
| Engine | 7.3L Gas |
| GVWR | 12,500 lbs |
| Passenger Capacity | 18 / 20 |
| Overall Width | 96″ |
| Overall Height | 116″ |
| Ground to Interior Floor | 30″ |
| Ground to 1st Step | 11.50″ |
| Step Riser | 9″ |
| Step Tread | 12″ |
| Step Width | 35.50″ |
| Entry Door Clear Opening | 33″ |
| Vehicle Name | B24 |
| Length | 24 ft |
| Wheelbase | 158 in / 176 in |
| Chassis | Ford E450 |
| Engine | 7.3L Gas |
| GVWR | 14,500 lbs |
| Passenger Capacity | 20 |
| Overall Width | 96″ |
| Overall Height | 116″ |
| Ground to Interior Floor | 30″ |
| Ground to 1st Step | 11.50″ |
| Step Riser | 9″ |
| Step Tread | 12″ |
| Step Width | 35.50″ |
| Entry Door Clear Opening | 33″ |
| Vehicle Name | B25 |
| Length | 25 ft |
| Wheelbase | 176 in |
| Chassis | Ford E450 |
| Engine | 7.3L Gas |
| GVWR | 14,500 lbs |
| Passenger Capacity | 22 |
| Overall Width | 96″ |
| Overall Height | 116″ |
| Ground to Interior Floor | 30″ |
| Ground to 1st Step | 11.50″ |
| Step Riser | 9″ |
| Step Tread | 12″ |
| Step Width | 35.50″ |
| Entry Door Clear Opening | 33″ |
| Vehicle Name | B28 |
| Length | 28 ft |
| Wheelbase | 212 in |
| Chassis | Ford E450 |
| Engine | 7.3L Gas |
| GVWR | 14,500 lbs |
| Passenger Capacity | 24 |
| Overall Width | 96″ |
| Overall Height | 116″ |
| Ground to Interior Floor | 30″ |
| Ground to 1st Step | 11.50″ |
| Step Riser | 9″ |
| Step Tread | 12″ |
| Step Width | 35.50″ |
| Entry Door Clear Opening | 33″ |
