Odyssey
A first-class travel experience for up to 25 occupants

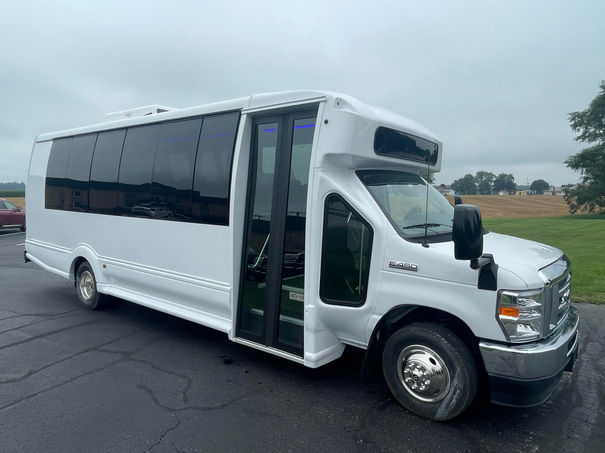

First-Class Travel Experience
The Odyssey family of buses provides a first-class travel experience for up to 25 occupants on the Ford E Series. With innovation, styling, and quality, the Odyssey shuttle bus is the best choice for churches, assisted living facilities, and airport shuttles to name a few.
- Available on Ford E-Series
- Up to 25 passenger capacity
- Ideal for churches, assisted living facilities, and airport shuttles
Legacy of Safety
The Odyssey is a legacy model at Turtle Top and includes our five-sided steel cage and other standard equipment most consider optional. We stand behind the Odyssey with a 5-Year/100,000 mile structural warranty, so cast worry and high operating cost aside.
- Five-sided steel cage construction
- Meets and exceeds FMVSS regulations
- 5-Year/100,000 mile structural warranty

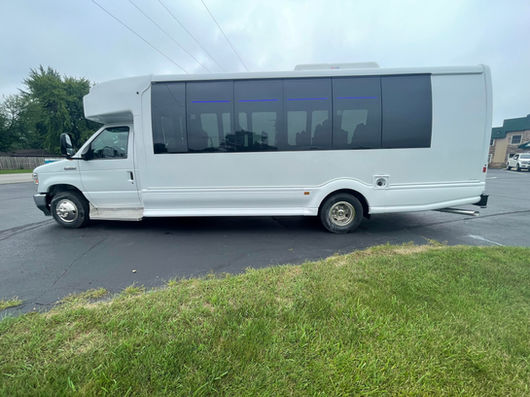

Exterior Design
The Odyssey features aerodynamic automotive style exterior fiberglass with standard white full body paint and many window styles and sizes to choose from.
- Aerodynamic automotive style exterior fiberglass
- Standard white full body paint
- Many window styles and sizes

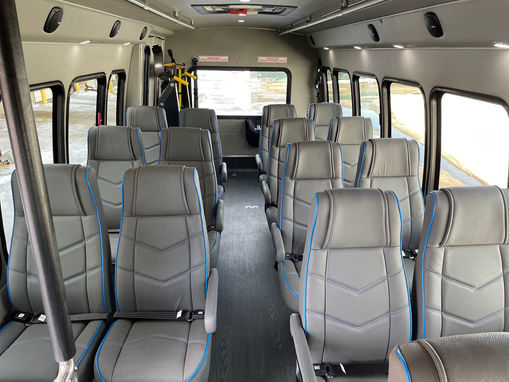

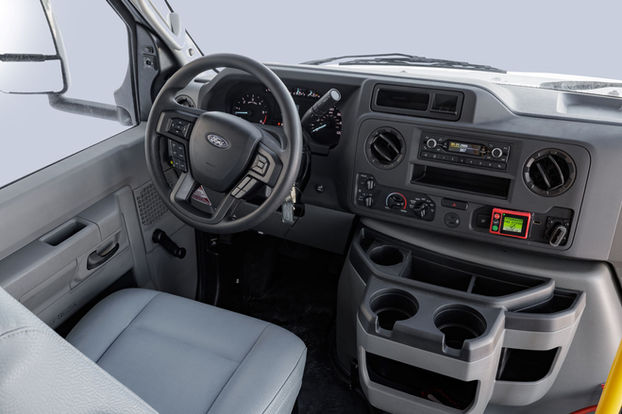

Interior Comfort
The Odyssey offers a wide aisle with maximum interior headroom for passenger comfort and easy movement throughout the bus.
- Wide aisle with max interior headroom
- 76" or 80" interior height options
- 94" interior width
Flexible Floorplans
Flexibility is built into every floorplan we design. Browse our available configurations below.
Odyssey 9 Passenger with Wheelchair Access

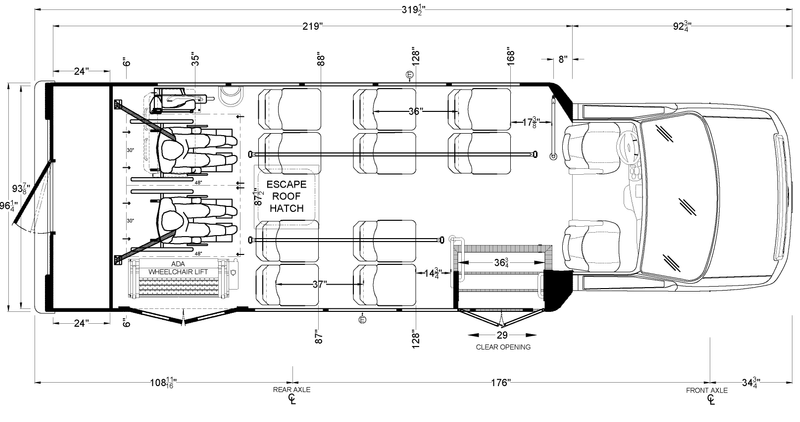

Odyssey 13 Passenger with Wheelchair Access
Odyssey 14 Passenger with Wheelchair Access

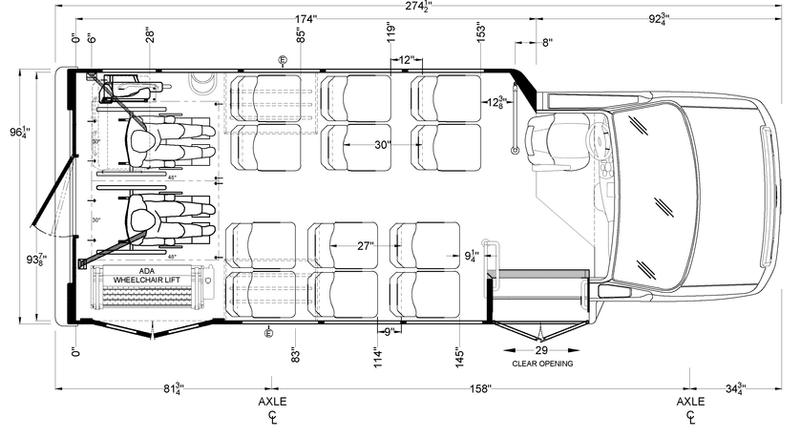

Odyssey 14 Passenger with Wheelchair Access and Double Fold Seats

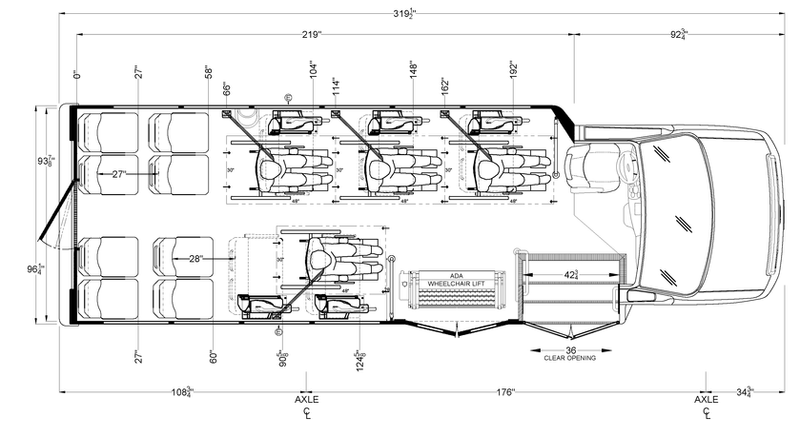

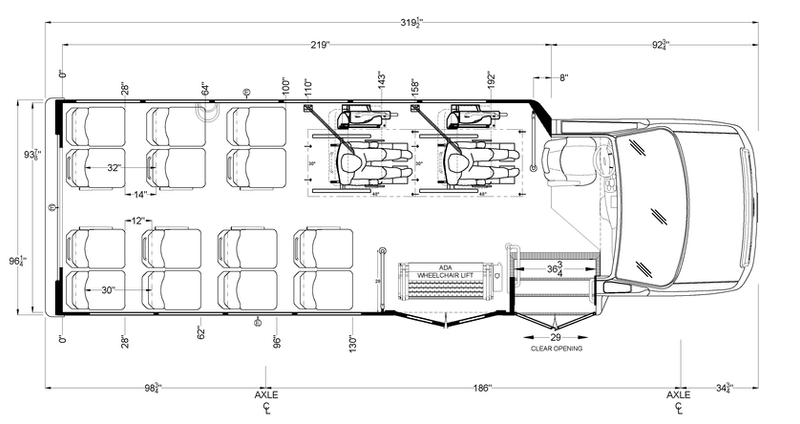

Odyssey 18 Passenger with Wheelchair Access
Odyssey 18 Passenger with Wheelchair Access

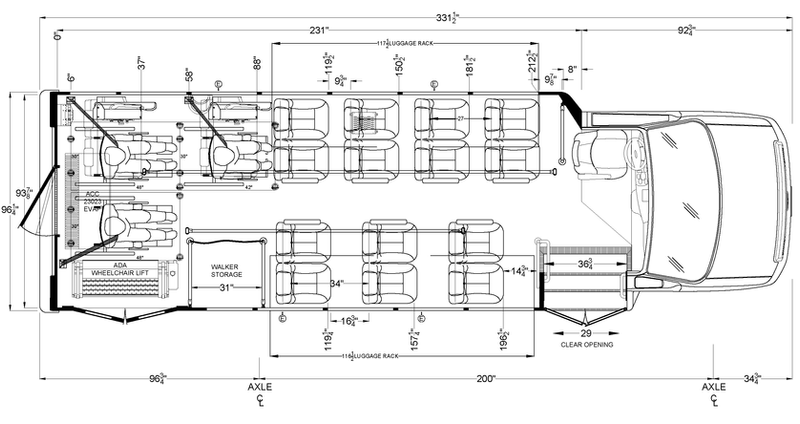

Odyssey 18 Passenger with Wheelchair Access and Luggage/Cargo

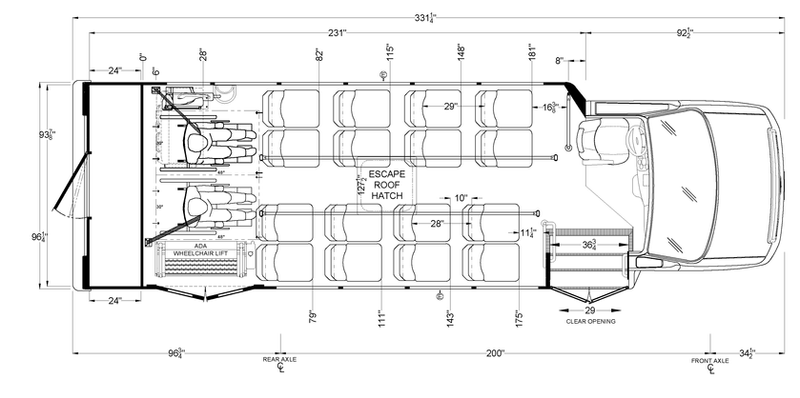

Odyssey 18 Passenger with Wheelchair Access and Rear Luggage

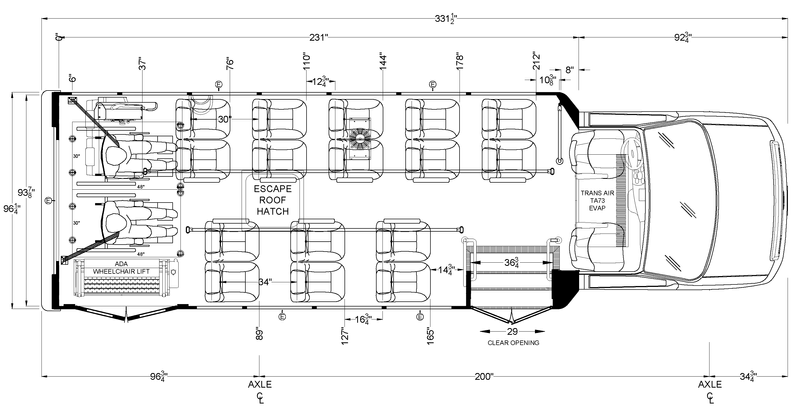

Odyssey 19 Passenger with Wheelchair Access and Co-Pilot

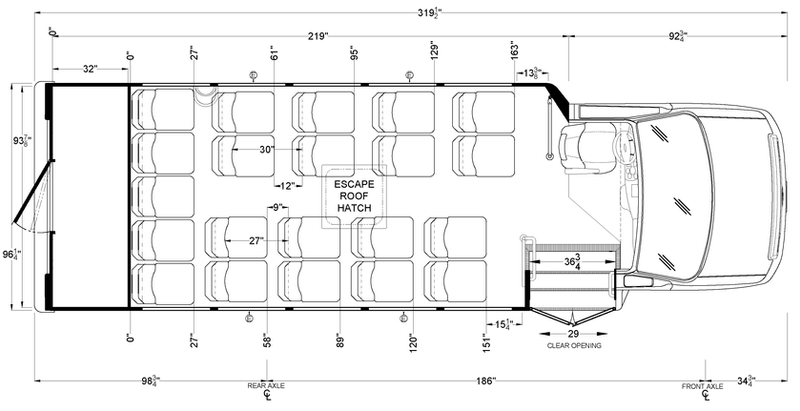

Odyssey 21 Passenger with Rear Luggage
Odyssey 23 Passenger with Luggage/Cargo
Specifications
Explore the complete specifications for all models.
| Specification | Value |
|---|---|
| Chassis | Ford E-450 |
| Max Capacity (Including Driver) | 26 |
| Interior Height | 76″ or 80″ |
| Exterior Height (Not including rooftop options) | 115″ |
| Interior Width | 94″ |
| Exterior Width (Not including mirrors) | 96″ |
| Overall Length | 22’10” / 24′ / 25’9″ / 26’7″ / 27’6″ |
| Wheel Base | 158″ / 176″ / 186″ / 200″ |
| GVWR | 12,500 / 14,500 lbs |
| Floor Length | 174″ / 187″ / 209″ / 219″ / 231″ |
| Door Width | 29″ / 35″ |
| Ground to 1st Step | 11″ |
| Step Riser Height | 9.5″ LF / 7.5″ RF |
| Step Run Depth | 9″, 10″ LF / 8.75″ RF |
Ready to Find Your Bus?
Browse our current inventory or contact us to discuss your specific needs.
